Description

The Dynalign sight picture provides more accurate and faster target acquisition, using a purely concentric sight picture that is similar to that used by Olympic target shooters.  Unlike red-dot or holographic sights, this sight picture does not obscure the target and actually enhances visibility due to the optical characteristics of apertures.

Most BUIS systems utilize a sight picture that is non-intuitive.  The brain’s visual systems are asked to align a circular rear aperture with a rectangular front post shape while simultaneously ignoring the “ears” that protect the front sight post.  Dynalign’s circle-within-circle sight picture allows for faster sight picture acquisition.  Additionally, the use of a front aperture further reduces parallax effect which makes accuracy less dependent on precise sight alignment.

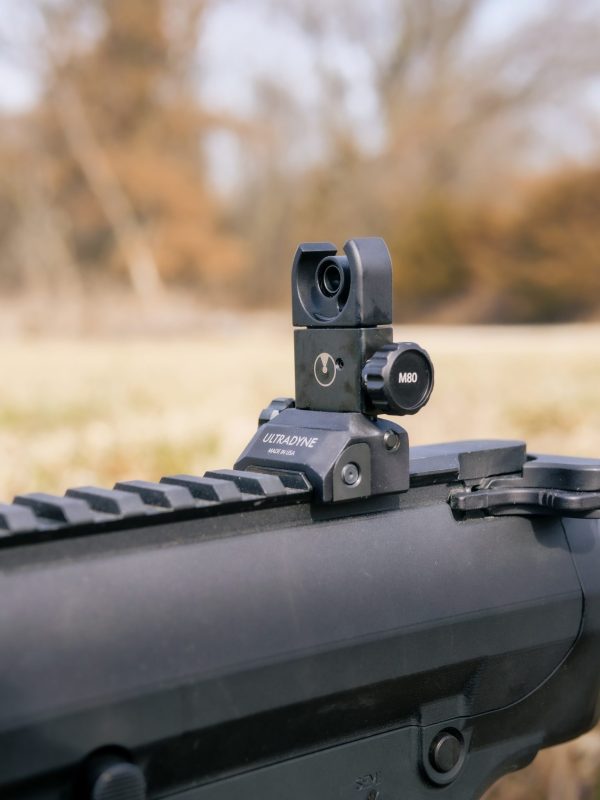

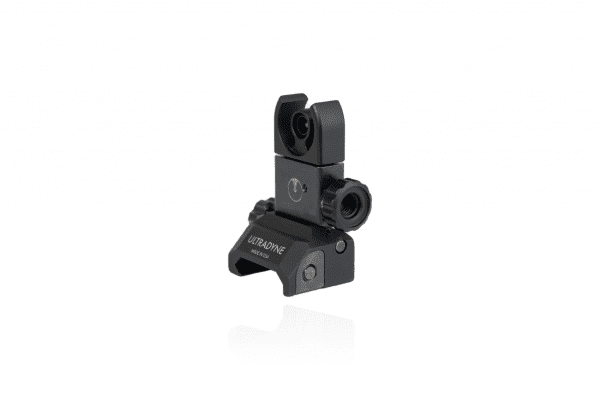

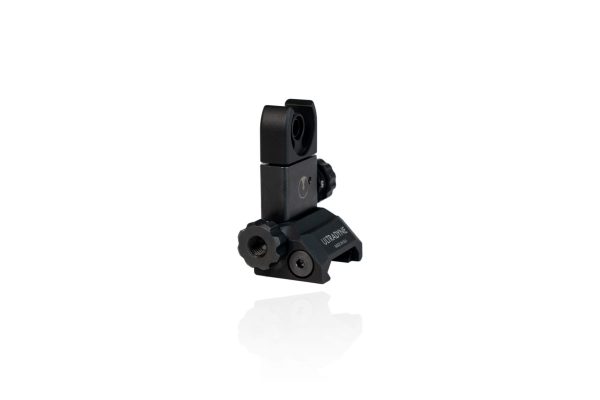

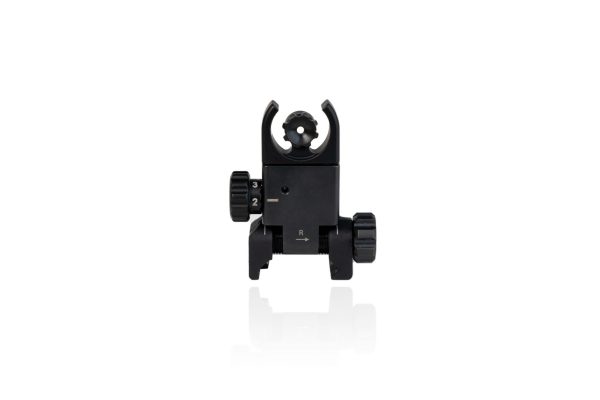

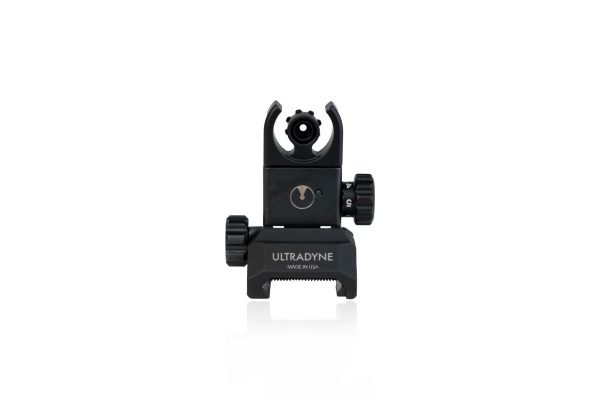

The C4 REAR SIGHT is a high quality folding rear sight that was engineered with accuracy in mind. Features include:

DYNALIGN SIGHT PICTURE TECHNOLOGY
Ultradyne exclusive alignment for accurate and immediate acquisition.

ONE-HANDED DEPLOYMENT AND STOWAGE
Postive detent allows operation without manipulation of buttons or latches.

SUPERIOR SIDE-ADJUST ERGONOMICS
Rapid windage and elevation adjustment from 200 to 600 yards at your fingertips.

INTERCHANGEABLE APERTURE
Spare aperture conveniently threads into windage knob until needed.

100% CNC MACHINED IN THE USA
American-made quality.

C4 Precision Folding Rear Sight Technical Specs

• REAR APERTURE

  • Threaded Ghost Ring
• • 0.070″ Included
  • 0.050″ Available
• MOUNTING
  • MIL-STD-1913 Picatinny Rail
• WINDAGE
  • 40 MOA Total
  • 1/2 MOA Per Click
• ELEVATION
  • 18 MOA Total
  • 50 yard BDC clicks to 600 yards
• MATERIAL
  • 416 SS Salt Bath Nitride Finish
  • 6061-T6 Aluminum, Hard Anodized
• MASS 71g | 2.5oz
• DIMENSIONS
  • 35mm | 1.38in Wide
  • 9.4mm | 0.369in Height (Stowed)
