Pulse Muzzle Brake
$90.00 – $99.00
Description
Pulse provides exceptional performance in a compact design. Gases are strategically diverted away and out of the shooters line of sight. Pulse strongly reduces recoil and minimizes muzzle rise helping the shooter get back on target quicker to ensure more accurate follow up shots. The PULSE is proof that good things do come in small packages! A timing nut is included for easy installation. Available in .223/5.56, .308/7.62, 350 Legend.
COMPACT DESIGN
High performance in a compact design
100% CNC MACHINED IN THE USA
416 Stainless Steel with ultra-rugged salt bath nitride finish.
416 Stainless Steel with ultra-rugged salt bath nitride finish.
DYNAMOUNT READY
Barrel mounted sight option eliminates sight deflection associated with handguard mounting.
Barrel mounted sight option eliminates sight deflection associated with handguard mounting.
Pulse .223 | 5.56 Technical Specs
- CALIBER
- Rated for the standard cartridges in the following calibers: 223 Rem, 5.56 x 45 NATO, 224 Valkyrie, 224 Weatherby Mag, 22-250 Rem, 222 Rem Mag, 222 Rem, 22 Nosler, 220 Swift, 22 PPC, 22 BR, 22 Hornet, 204 Ruger, 218 Bee
- MINIMUM BARREL LENGTH 12"
- BARREL THREAD 1/2-28 UNEF-2B
- BARREL THREAD LENGTH MINIMUM .600"
- MATERIAL
- 416 Stainless Steel
- Salt Bath Nitride Finish

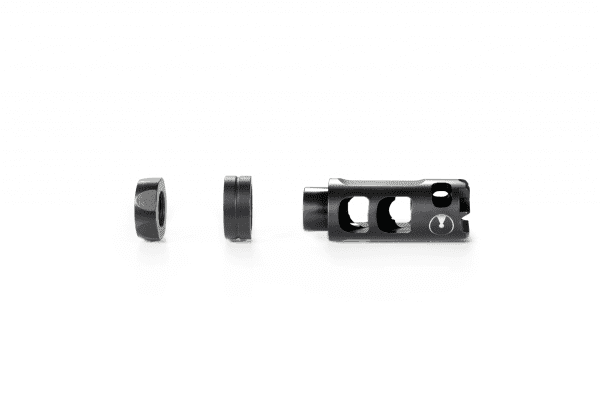

- MOUNTING Shrouded Timing Nut
- MASS
- Brake Only 70 grams | 2.6 ounces
- Total 98 grams | 3.4 ounces
- DIMENSIONS
- Length 57mm | 2.25 inches
- OD 22mm | 0.865 inches
- WRENCH FLATS 3/4 inch
- TIMING NUT WRENCH FLATS 13/16 inch
Pulse .308 | 7.62 Technical Specs
- CALIBER
- Rated for 300 Win Mag, 30-06 Springfield, 30-30 Win, 300, 300 Savage, 308 Norma, 308 Win, 7.62x51
- MINIMUM BARREL LENGTH 12"
- BARREL THREAD 5/8-24 UNEF-2B
- BARREL THREAD LENGTH MINIMUM .600"
- MATERIAL
- 416 Stainless Steel
- Salt Bath Nitride Finish
- MOUNTING Shrouded Timing Nut
- MASS
- Brake Only 92 grams | 3.3 ounces
- Total 118 grams | 4.1 ounces
- DIMENSIONS
- Length 57mm | 2.25 inches
- OD 25mm | 0.975 inches
- WRENCH FLATS 13/16 inch
- TIMING NUT WRENCH FLATS 15/16 inch
Pulse 350 Legend Technical Specs
- CALIBER
- Rated for the 350 Legend
- MINIMUM BARREL LENGTH 12"
- BARREL THREAD *1/2-28 UNEF-2B*
- BARREL THREAD LENGTH MINIMUM .600"
- MATERIAL
- 416 Stainless Steel
- Salt Bath Nitride Finish
- MOUNTING *Crush Washer*
- MASS
- Brake Only 92 grams | 3.3 ounces
- Total 118 grams | 3.4 ounces
- DIMENSIONS
- Length 57mm | 2.25 inches
- OD 25mm | 0.975 inches
- WRENCH FLATS 7/8 inch
- *** CRUSH WASHER DIAMETER *** 1/2 inch
-
Installation Instructions For Crush Washer:
- Inspect and clean threads on barrel and muzzle device.
- Place the crush washer cone forward over the muzzle threads, then thread the muzzle device up against the crush washer.
- Hand tighten the muzzle device and note that crush must be flush with barrel shoulder and fully depress the detent.
- Using a wrench, turn the muzzle device 1/4 turn, then continue to tighten to index properly. If the muzzle device is tightened past desired position, start over with a new crush washer.
- Check concentricity with a bore alignment rod.
- Test fire at 25 yards into a paper target backed up by a minimum 15' x 15' safety berm capable of safely stopping projectiles. Verify the ability to shoot groups and inspect for baffle strikes for all loads that will be used.
Palmer –
I put this brake on my 18” 223 rifle to cut down on overall barrel length, but I definitely didn’t sacrifice performance. My rifle shoots just like a 22 (but crazy loud). I wouldn’t hesitate to get another one down the road.
SomeOldDude (verified owner) –
I bought the 350 legend version for recoil reduction on my AR platform in 350 legend. It definitely reduced the recoil, but wow was it loud. I will definitely recommend these to my customers and others.
Brian –
I purchased two Pulse muzzle brakes and I am completely satisfied. At the time, I needed a quality muzzle brake but couldn’t afford to Apollo brakes so I did buy the Pulse brakes and they function superbly. I put these of a 300 Blackout and a 7.62×39 AR and the recoil was drastically reduced and muzzle rise was easily cut by 75% and maybe more. The Pulse is nice if you are on a budget but need a quality brake for your firearm.
David A. –
Purchased the Pulse muzzle brake to replace the flash hider on my wife’s IWI Zion (AR-15). This is my second Ultradyne brake, I have an Apollo LR on my Tikka T3X Tac 6.5CM, so I knew the quality and design would be great, not disappointed. Removing the flash-hider was easy, installation of the Pulse with the lock-nut was even easier, and the look is clean and tidy. The recoil reduction and increase in side blast and noise was astonishing. Both straight back and muzzle rise recoil seemed to be diminished significantly. What is also amazing is how much side-blast and increase in loudness, that said, I just purchased another for another build.
BigBuckeye1976 –
Drastically reduces the recoil and muzzle rise. The only negative is that the other shooters at the range won’t like you : ). I won’t buy a muzzle break from any other manufacturer
PUBLICS EYE OUTDOORS (verified owner) –
I started with the Apollo Max on my 308 and fell in love! The pulse was my next purchase for an AR. Once again I saw the overwhelming positjve change this product had on the guns performance! Can not recommend enough!
