Apollo S Muzzle Brake
$129.00 – $139.00
Description

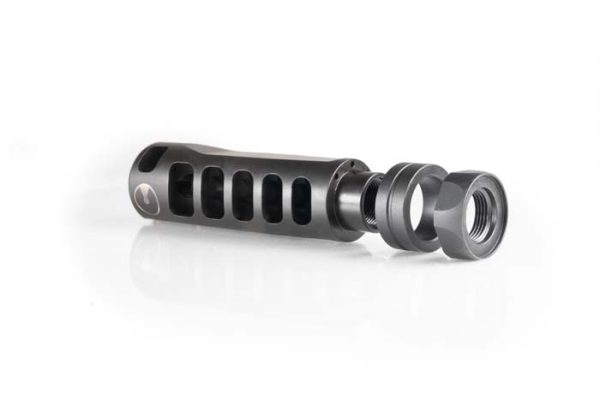

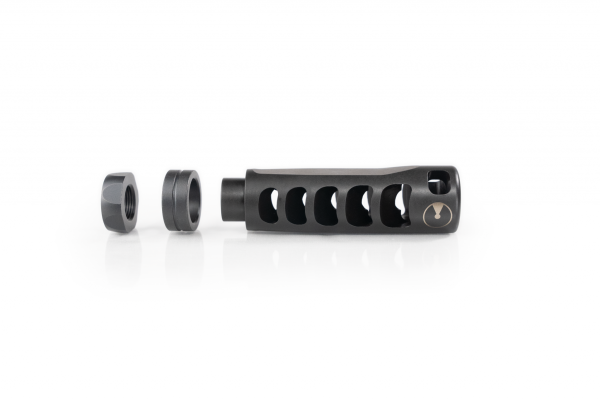

The APOLLO S from Ultradyne provides competition level recoil reduction and muzzle control. By using a scientific approach and studying thousands of recoil events, Ultradyne engineers have struck a balance between extreme recoil reduction, virtual elimination of muzzle rise, and less aggressive venting of gas. The Apollo S is perfect for shooters who want drastic recoil reduction with less perceived blast. The perfectly sized 5-Port design evens out the recoil event which produces an ultra smooth shot like no other compensator. A timing nut is included for easy installation.
Perfect Balance
Extreme recoil reduction with less perceived blast
5 PORT DESIGN
The 5-port design creates an ultra smooth recoil event that improves performance and makes shooting more enjoyable
100% CNC MACHINED IN THE USA
416 Stainless Steel with ultra-rugged salt bath nitride finish.
Barrel mounted sight option eliminates sight deflection associated with handguard mounting.
Muzzle Device Knowledge
Muzzle Devices offer numerous benefits to the shooter including allowing for more accuracy and quicker follow up shots. Reducing Recoil is often the primary goal and while low recoil reduces muzzle rise it does not totally eliminate it. A well-designed Muzzle Device will incorporate features to address Muzzle Rise as well. Reduced Recoil and Muzzle Rise are both accomplished by redirecting expanding gases. It is important for the shooter to understand that redirecting gas has consequences. Redirected gas away from the bullet path helps accuracy and speed for the shooter but also creates more sound, concussion, and unburnt gas particles to contend with. It is vital that the shooter understand the Redirected Gas Path (RGP) for the Muzzle Device they choose.
RGP direction and volume are determined by the Muzzle Device ports. The more gas volume that is redirected the higher the performance of the Muzzle Device. Many high performance Muzzle Devices can turn gas at an extreme angle rearward and the shooter must be comfortable that body parts are positioned on the firearm so not to be negatively impacted. It is important to understand that RGP is not accurately definable as different ammunition using the exact same firearm/Muzzle Device combination will vary. Atmospheric pressure, temperature and elevation also effect powder burn and expanding gas effects in the RGP.
Ultradyne offers different Muzzle Devices that redirect gases at varying angles to provide a muzzle device option for every shooter. With this being said, it is important for the shooter to understand their proximity to the Muzzle Device itself and determine if the RGP will cause problems. For example, the RGP on a traditional M4 16” barrel with a combat forearm equipped with an Apollo Max will bypass a 5’9” shooter totally, however the RGP on a gun that is equipped with a fully extended hand guard and 20” barrel could possibly impact the arm of a 6’6” shooter that uses a fully extended arm style grip. It is truly up to the shooter to determine the ideal set up for an acceptable Redirected Gas Path (RGP) for the ammo, firearm and individual shooting style to be used.
Apollo S 223 | 5.56 Technical Specs
- CALIBER
- Rated for the standard cartridges in the following calibers: 223 Rem, 5.56 x 45 NATO, 224 Valkyrie, 224 Weatherby Mag, 22-250 Rem, 222 Rem Mag, 222 Rem, 22 Nozler, 220 Swift, 22 PPC, 22 BR, 22 Hornet, 204 Ruger, 218 Bee
- MINIMUM BARREL LENGTH 14"
- BARREL THREAD 1/2-28 UNEF-2B
- BARREL THREAD LENGTH MINIMUM .600"
- MATERIAL
- 416 Stainless Steel
- Salt Bath Nitride Finish
- MOUNTING Shrouded Timing Nut
- MASS
- Brake Only 124 grams | 4.4 ounces
- Total 147 grams | 5.2 ounces
- DIMENSIONS
- Length 75mm | 2.94 inches
- OD 24.8 mm | 0.975 inches
- WRENCH FLATS 13/16 inch
- TIMING NUT WRENCH FLATS 13/16 inch
Apollo S 6.5 Creedmoor Technical Specs
- CALIBER
- Rated for the standard cartridges in the following calibers: 6.5 Creedmoor, 6.5 Grendel, 6mm Rem, 6mm BR, 25-06 Rem, 257 Roberts, 243 WSSM
- NOT COMPATIBLE WITH 6.5 PRC, PLEASE SEE APOLLO LR 6.5
- MINIMUM BARREL LENGTH 14"
- BARREL THREAD 5/8-24 UNEF-2B
- BARREL THREAD LENGTH MINIMUM .600"
- MATERIAL
- 416 Stainless Steel
- Salt Bath Nitride Finish
- MOUNTING Shrouded Timing Nut
- MASS
- Brake Only 130 grams | 4.5 ounces
- Total 153 grams | 5.4 ounces
- DIMENSIONS
- Length 75mm | 2.94 inches
- OD 24.8 mm | 0.975 inches
- WRENCH FLATS 7/8 inch
- TIMING NUT WRENCH FLATS 15/16 inch
Apollo S .308 / 7.62 Technical Specs
- CALIBER
- Rated for the standard cartridges in the following calibers: 308 Win, 7.62×51 NATO, 300 AAC Black Out, 300 Savage, 303 Savage, 30-30 Win, 30-06 Springfield
- NOT COMPATIBLE WITH 7MM, 7MM PRC, PLEASE SEE APOLLO LR 7MM
- NOT COMPATIBLE WITH 300 WIN, 300 PRC, 300 WSM, PLEASE SEE APOLLO LR 300
- MINIMUM BARREL LENGTH 14"
- BARREL THREAD 5/8-24 UNEF-2B
- BARREL THREAD LENGTH MINIMUM .600"
- MATERIAL
- 416 Stainless Steel
- Salt Bath Nitride Finish
- MOUNTING Shrouded Timing Nut
- MASS
- Brake Only 125 grams | 4.4 ounces
- Total 150 grams | 5.3 ounces
- DIMENSIONS
- Length 75mm | 2.94 inches
- OD 24.8 mm | 0.975 inches
- WRENCH FLATS 7/8 inch
- TIMING NUT WRENCH FLATS 15/16 inch
Erno (verified owner) –
I got this thing for my AR and I am running some hot loads. I was stunned on how much recoil reduction it provides. It went to almost no recoil at all and I have no other recoil mitigation systems on the rifle. I have to admit that it does blow back a lot of gas but it was well diverted so bust rise was minimal when shooting prone. Overall it’s a great choice. Got my time down on stages quite a bit. It made me incline towards buying the Max for my 6.5
Kenneth (verified owner) –
Picked this out for my sons .223 Ruger American ranch. Reduced the recoil to nothing without hitting him with the gas blowback. I can’t stress enough how amazing this thing is. If you are looking just get it you won’t regret it.
David (verified owner) –
Bought this for my daughters AR build. It almost eliminates all the recoil and muzzle rise. It will blow dry your hair if standing to one side of the shooter. It also increased the noise a good bit making it very load especially under cover or inside, dont forget the hearing protection. I will be getting another for my Grendel. Highly recommended.
Thomas (verified owner) –
Highly recommend! Bought this a little bit ago for my 308, but hadn’t had the chance to try it out until recently. Before installing, I had quite a bit of muzzle rise and really felt the recoil. Install was pretty straight forward. I’m a bit picky so spent a little time to get it perfect, but thankfully it’s easy to adjust. After installing and test firing, virtually no muzzle rise at all! Obviously still feel some recoil, but drastically reduced. It’s definitely much louder now though. I will say, if you’re the one shooting it’s not as noticeable and life is grand. However, if you’re standing near by (even behind a bit) you will not only be met with the loudness but will definitely feel the gas blow back – might make for some slightly annoyed neighbors at the range. Overall though, I am really impressed and beyond happy. Final piece of the puzzle to finish my build perfectly.
Boon (verified owner) –
I bought the APOLLO S just after watching a comparison video with the SJC Titan on YouTube, didn’t about your company or product. I am super thrilled I bought this and have recommended to my buddies who also have rifles of different calibers. One just ordered on last night and have two more planing on ordering. This product is as advertised. I am a beginner and boy it makes a tremendous difference. If and when I purchase another rifle, I will be ordering this same product or a better new design if there is one! Shipping was stress free. Came in when I wasn’t even expecting it! I love the APOLLO S!!!
Boon (verified owner) –
I am a beginner and I absolutely love this Apollo S muzzle break. It is freaking awesome. Customer service on point as well. I was planning on purchasing the SJC Titan and probably would’ve been happy with i am so glad I found this muzzle break. My buddies who’ve hunted all their lives was stunned in the amount recoil or lack there of. I recommend this for first time owners who can handle or is concerned about the amount of recoil a certain gun will produce. 3 of my friends are already ordering or have ordered it.
BARRY –
BETTER THAN A 5 STAR! USED ON MY TIKKA T3X CTR IN 6.5 CREEDMOOR. THIS IS MY THIRD FROM THIS
COMPANY. GREAT ADDITION TO A VERY VERY ACCURATE RIFLE. WEIGHT IS FANTASTIC, SUPER LOW RECOIL
TO FOLLOW TRACE. GREAT COMBO…
Diane –
I bought the Apollo S from Midway USA for my UintahPrecision 6.5 Grendel.
Install was very easy even for a woman and it looks awesome on my rifle. I hope to the range in the next week or 2 to try it out.
Joseph (verified owner) –
Purchased this Apollo S brake in .308 for my son’s Bergara B14 HMR. He loves the rifle but found the recoil to be a bit heavy for a days worth of shooting. We installed the brake which took only a few minutes and torqued it to spec. We went to the range and were astounded by how well this device manages recoil. The Bergara .308 is now fun to shoot. The difference is unbelievable. Many thanks for such a well made and effective product. Outstanding.
Thomas Jamison –
Thanks for the review! Glad you are enjoying it.
Brian (verified owner) –
I am COMPLETELY sold on Ultradyne & their products. My recent purchase was an Apollo S muzzle brake. I love the recoil and muzzle rise reduction. Now my fellow peers at the range aren’t very happy with me as it surely made my rifle much louder but oh well that’s what ear protection is for. 223 Wylde has low recoil straight out of the box but add an Ultradyne muzzle brake and recoil is basically zero. I’ve purchased other muzzle brakes from Ultradyne (Pulse) and they are just as quality of a product.
Parker Rothweiler –
Thank you Brian! We greatly appreciate your kind words and hope to be a part of your future builds!
Mark-Anthony –
It works and works very well. On my 7.62×39, the recoil is hardly felt and no muzzle flip. But when I say, wear ear protection, please wear ear protection. It’s very loud for the shooter. For anyone behind the shooter or the the side, it’s not so ear piercing. Get you one!!!!
Michael Vaughan (verified owner) –
Apollo S unbeatable, incredible recoil reduction precisions rifle. Simply the best on the market
Mercury – best on 11.5”. PS. Do not put Apollo S on 11.5”
Pulse- great on shortie .300BLK.
ULTRADYNE has been consistently producing top tier parts. They are the only brakes that go on my firearms
Rick –
Does this fit a 300 win mag heavy barrel?
Blake Trickey –
Hi Rick! Thank you for reaching out to Ultradyne! Just as a heads up, we list all the compatibilities under the “Specifications” tab; we do not rate 300 Win Mag for the Apollo S. For the best muzzle brake on a heavy barrel 300 Win Mag, you will need the Apollo LR 300 1.000″ BBL Timing Nut. In the drop down, please select “300 caliber” and “1.000 BBL” for the timing nut. Please email us at sales@ultradyneusa.com with any other questions, and we would love to assist futher.
