Description

Dynamount Information

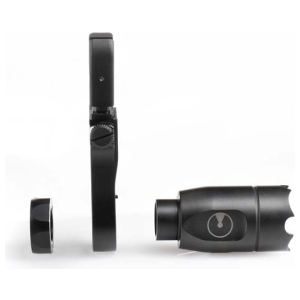

The C4 Dynamount Front Sight / Athena Linear Compensator Combo features the innovative C4 Dynamount Front Sight which ensures superior accuracy by mounting to the barrel instead of a free floating handgaurd along with extending the firearms sight radius. Additionally, the purely concentric circle-within-circle sight picture of the C4 Sight System allows the shooter to see the target not cover it, enables faster sight acquisition, reduces the effect of parallax and gives the ability to consistently shoot accurately at tagets that are close or at extreme distances. Increased flexibility by having windage and elevation along with the ability to index at 45 or 90 degrees make this sight the best on the market. Paired with the Athena Linear Compensator that provides a reduced sound signature which sends a lower percent of sound and gasses back towards the shooter, optimizing sonic performance over recoil.

Dynamount Front Sight Information

Most of the time, shooters mount front sights on the picatinny rail of a free-float handguard.

By definition, a free-float handguard doesn’t move with the barrel. This means that when the handguard moves, the sights do too.

Even properly-installed handguards move, whether it’s from the weight of the firearm, a strong grip, or impact. Especially at the end, farthest from the point of attachment, and where most users mount sights.

A small amount of movement can make a big difference in point of aim. Movement as little as 0.01 inches at the handguard means almost 2 inches at 100 yards.

The solution is Dynamount. Barrel-mounted sights for consistent aim, every time.

The Dynalign sight picture provides more accurate and faster target acquisition, using a purely concentric sight picture that is similar to that used by Olympic target shooters.  Unlike red-dot or holographic sights, this sight picture does not obscure the target and actually enhances visibility due to the optical characteristics of apertures.

Most BUIS systems utilize a sight picture that is non-intuitive.  The brain’s visual systems are asked to align a circular rear aperture with a rectangular front post shape while simultaneously ignoring the “ears” that protect the front sight post.  Dynalign’s circle-within-circle sight picture allows for faster sight picture acquisition.  Additionally, the use of a front aperture further reduces parallax effect which makes accuracy less dependent on precise sight alignment.

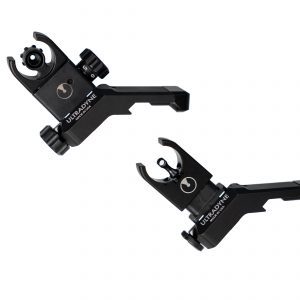

The C4 DYNAMOUNT FRONT SIGHT is a high quality folding front sight that was engineered with accuracy in mind. Features include:

DYNALIGN SIGHT PICTURE TECHNOLOGY
Ultradyne exclusive alignment for accurate and immediate acquisition.

WINDAGE-ADJUSTABLE FOR ZEROING
Regain full range of rear windage adjustment and guarantee center-zero operation.

TOOL-LESS ELEVATION ADJUSTMENT
Make hassle-free adjustments anywhere, anytime.

INDEXABLE TO STANDARD UPRIGHT OR 45 DEGREES FOR OFFSET USE
Dynamount allows the user to install in either standard upright or offset configuration.

100% CNC MACHINED IN THE USA
American-made quality.

C4 Dynamount Folding Front Sight Technical Specs

• Front Pin

  • Includes 12 MOA Dynalign aperture.
  • 8, 10, and 14 MOA Available
  • Standard Front Post Available
• MOUNTING
  • Must mount with any Ultradyne Muzzle Device
• WINDAGE (at 21″ Sight Radius)
  • 40 MOA Total
  • 1/2 MOA Per Click
• ELEVATION (at 21″ Sight Radius)
  • 28 MOA Total
  • 1.25 MOA per 1/4 turn
• MATERIAL
  • 4140 CrMo Steel, Salt Bath Nitride Finish
  • 7075 Aerospace Alloy, Hard Anodized
• MASS 62g | 2.2oz

Athena Information

ATHENA is a linear compensator that provides a reduced sound signature which sends a lower percent of sound back towards the shooter, optimizing sonic performance over recoil. Athena is the most cost-effective way to upgrade a rifle to the Dynamount Sighting System and gives a cleaner appearance for a sleek look compared to traditional brakes.

• Optimal Sonic Performance
• Vents Gases forward
• Shrouded Timing nut included for easy installation and indexing
• Indexing slots compatible with the Dynamount Front Sight allow for a standard upright alignment or a 45 degree offset
• 416 Stainless Steel with Ultra Rugged SB Nitride Coating
• Competition Legal
• 100% CNC-machined quality
• 100% Made in the USA

LINEAR COMPENSATION
Forward-directed sound signature for greater shooter comfort.

100% CNC MACHINED IN THE USA
416 Stainless Steel with ultra-rugged salt bath nitride finish.

DYNAMOUNT READY
Barrel mounted sight option eliminates sight deflection associated with handguard mounting.

Athena .223 | 5.56 Technical Specs

• CALIBER
  • Rated for the standard cartridges in the following calibers: 223 Rem, 5.56 x 45 NATO, 224 Valkyrie, 224 Weatherby Mag, 22-250 Rem, 222 Rem Mag, 222 Rem, 22 Nosler, 220 Swift, 22 PPC, 22 BR, 22 Hornet, 204 Ruger, 218 Bee
• BARREL THREAD 1/2-28 UNEF-2B
• MATERIAL
  • 416 Stainless Steel
  • Salt Bath Nitride Finish
• MOUNTING Shrouded Timing Nut
• MASS
  • Brake Only 109 grams | 3.8 ounces
  • Total 133 grams | 4.7 ounces
• DIMENSIONS
  • Length 43mm | 1.69 inches
  • OD 24.8 mm | 0.975 inches
• WRENCH FLATS 7/8 inch

Athena .308 | 7.62 Technical Specs

• CALIBER
  • Rated for the standard cartridges in the following calibers: 308 Win, 7.62×51 NATO, 300 AAC Black Out, 300 Savage, 303 Savage, 30-30 Win
• BARREL THREAD 5/8-24 UNEF-2B
• MATERIAL
  • 416 Stainless Steel
  • Salt Bath Nitride Finish
• MOUNTING Shrouded Timing Nut
• MASS
  • Brake Only 130 grams | 4.6 ounces
  • Total 158 grams | 5.56 ounces
• DIMENSIONS
  • Length 43mm | 1.70 inches
  • OD 27.9 mm | 1.10 inches
• WRENCH FLATS 1 inch

Athena 350 Legend Technical Specs

• CALIBER
  • Rated for the 350 Legend
• BARREL THREAD  1/2-28 UNEF-2B
• MATERIAL
  • 416 Stainless Steel
  • Salt Bath Nitride Finish
• MOUNTING Shrouded Timing Nut
• MASS
  • Brake Only 130 grams | 4.6 ounces
  • Total 158 grams | 5.56 ounces
• DIMENSIONS
  • Length 43mm | 1.70 inches
  • OD 27.9 mm | 1.10 inches
• WRENCH FLATS 1 inch
