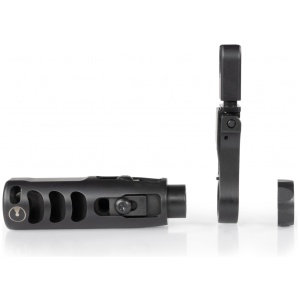

C4 Dynamount Folding Front Sight + X1 .223/5.56

$330.00$500.00

Description

X1 is a tunable, high-performance compensator like no other. It combines a highly efficient asymmetrical port design along with two adjustable ports to create a compensator that will provide optimal performance based on the individual shooter.  Pair this with the most accurate, easy to use BUIS, The C4 DYNAMOUNT FRONT SIGHT, and you have the ultimate combination. The innovative C4 Dynamount Front Sight ensures superior accuracy by mounting to the barrel instead of a free floating handgaurd along with extending the firearms sight radius. Additionally, the purely concentric circle-within-circle sight picture of the C4 Sight System allows the shooter to see the target not cover it, enables faster sight acquisition, reduces the effect of parallax and gives the ability to consistently shoot accurately at tagets that are close or at extreme distances. Increased flexibility by having windage and elevation along with the ability to index at 45 or 90 degrees make this sight the best on the market.

Dynamount Front Sight

Most of the time, shooters mount front sights on the picatinny rail of a free-float handguard.

By definition, a free-float handguard doesn’t move with the barrel. This means that when the handguard moves, the sights do too.

Even properly-installed handguards move, whether it’s from the weight of the firearm, a strong grip, or impact. Especially at the end, farthest from the point of attachment, and where most users mount sights.

A small amount of movement can make a big difference in point of aim. Movement as little as 0.01 inches at the handguard means almost 2 inches at 100 yards.

The solution is Dynamount. Barrel-mounted sights for consistent aim, every time.

The Dynalign sight picture provides more accurate and faster target acquisition, using a purely concentric sight picture that is similar to that used by Olympic target shooters.  Unlike red-dot or holographic sights, this sight picture does not obscure the target and actually enhances visibility due to the optical characteristics of apertures.

Most BUIS systems utilize a sight picture that is non-intuitive.  The brain’s visual systems are asked to align a circular rear aperture with a rectangular front post shape while simultaneously ignoring the “ears” that protect the front sight post.  Dynalign’s circle-within-circle sight picture allows for faster sight picture acquisition.  Additionally, the use of a front aperture further reduces parallax effect which makes accuracy less dependent on precise sight alignment.

The C4 DYNAMOUNT FRONT SIGHT is a high quality folding front sight that was engineered with accuracy in mind. Features include:

DYNALIGN SIGHT PICTURE TECHNOLOGY
Ultradyne exclusive alignment for accurate and immediate acquisition.

WINDAGE-ADJUSTABLE FOR ZEROING
Regain full range of rear windage adjustment and guarantee center-zero operation.

TOOL-LESS ELEVATION ADJUSTMENT
Make hassle-free adjustments anywhere, anytime.

INDEXABLE TO STANDARD UPRIGHT OR 45 DEGREES FOR OFFSET USE
Dynamount allows the user to install in either standard upright or offset configuration.

100% CNC MACHINED IN THE USA
American-made quality.

C4 Dynamount Folding Front Sight Technical Specs

  • Front Pin

    • Includes 12 MOA Dynalign aperture.
    • 8, 10, and 14 MOA Available
    • Standard Front Post Available
  • MOUNTING
    • Must mount with any Ultradyne Muzzle Device
  • WINDAGE (at 21″ Sight Radius)
    • 40 MOA Total
    • 1/2 MOA Per Click
  • ELEVATION (at 21″ Sight Radius)
    • 28 MOA Total
    • 1.25 MOA per 1/4 turn
  • MATERIAL
    • 4140 CrMo Steel, Salt Bath Nitride Finish
    • 7075 Aerospace Alloy, Hard Anodized
  • MASS 62g | 2.2oz



X1 Tunable Compensator

X1 is a tunable, high-performance compensator like no other. It combines a highly efficient asymmetrical port design along with two adjustable ports to create a compensator that will provide optimal performance based on the individual shooter. The adjustable ports counteract for the different variables that cause muzzle movement like shooting style, shooters physical stature, gun weight, barrel length and ammunition to name a few. The only way to have perfect muzzle control is to have a tunable compensator. The X1 makes this process easy with its Adjustable Port Door System which changes compensation on both the x and y axis to enable optimal muzzle control for every shooter no matter the variables. Since there are separate left-hand and right-hand models, and the ports are asymmetrical, the redirected gas path is optimized to give the shooter the maximum amount of performance and recoil reduction with less perceived blast.  Like all Ultradyne muzzle devices, a timing nut is included for easy installation. Get unmatched muzzle control with the X1!

TUNABLE
Attain perfect muzzle control

ULTIMATE RECOIL REDUCTION
Class-leading performance.

100% CNC MACHINED IN THE USA
416 Stainless Steel with ultra-rugged salt bath nitride finish.

DYNAMOUNT READY
Barrel mounted sight option eliminates sight deflection associated with handguard mounting.

X1 223 | 5.56 Technical Specs

  • CALIBER Rated for .223 Rem | 5.56 x 45
  • MINIMUM BARREL LENGTH   16″
  • BARREL THREAD 1/2-28 UNEF-2B
  • BARREL THREAD LENGTH MINIMUM  .600″
  • MATERIAL
    • 416 Stainless Steel
    • Salt Bath Nitride Finish
  • MOUNTING Shrouded Timing Nut
  • MASS
    • Brake Only 150 grams | 5.3 ounces
    • Total 173 grams | 6.1 ounces
  • DIMENSIONS
    • Length 75mm | 2.94 inches
    • OD 24.8 mm | 0.975 inches
  • WRENCH FLATS 7/8 inch
  • ADJUSTABLE PORT SCREW IP-15 Torx Plus
