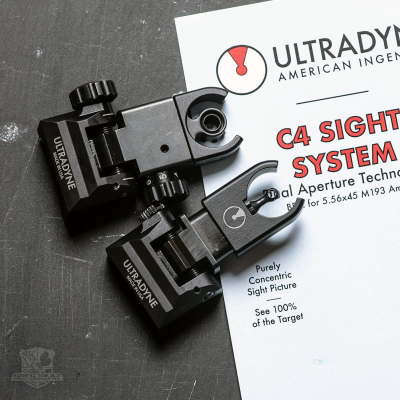

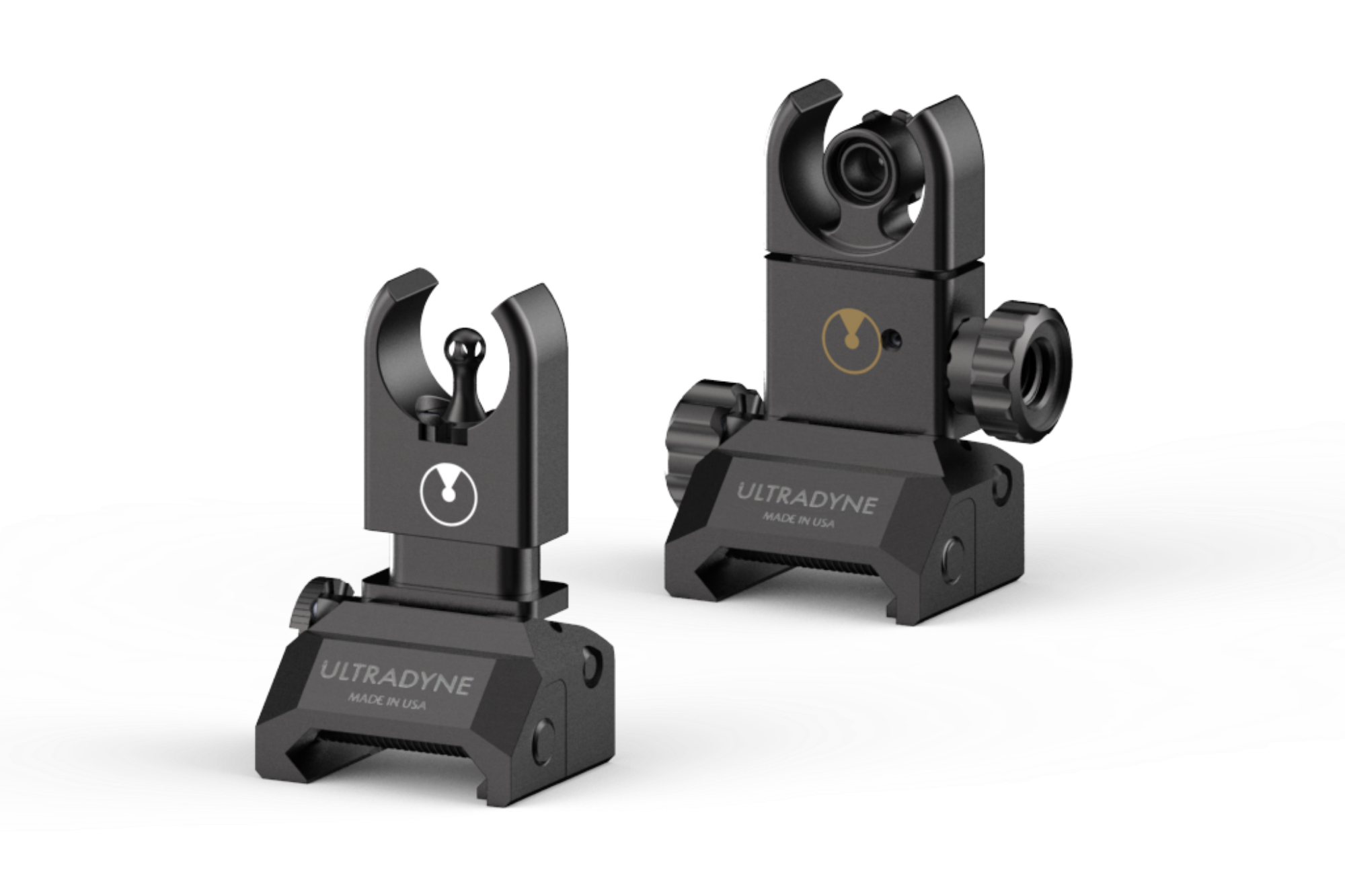

C4 Front & Rear Sight Combo
$299.00
Description
Made in the USAThe C4 Sight Combo uses Dynalign Technology to deliver a superior sighting system. The innovative four concentric circles create a sight picture that optimizes accuracy.
C4 Front Sight Features:
- Outer and inner concentric circles for easy target acquisition
- Windage adjustable for zeroing on the front sight, which guarantees that the rear sight windage is perfectly centered when at zero for maximum in windage adjustment in either direction along with easy return to zero
- Tool-less elevation adjustment that is always perfectly concentric with outer circle
- Aperture sight gives a shooter the ability to focus 100% on the target
- Strategic use of materials to maximize strength and weight

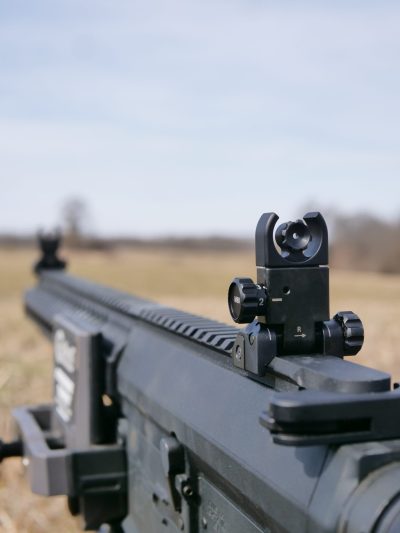

C4 Rear Sight Features:
- A purely concentric sight picture with an inner aperture and outer circle for easy alignment
- Rapid windage and elevation adjustments
- Elevation adjustment to 600 yards
- One-handed deployment and stowage
- Interchangeable Apertures, .70″, .50″ and a ghost ring
- Spare aperture conveniently stores into windage knob
- Strategic use of materials to maximize strength and weight
DYNALIGN TECHNOLOGY: Concentric Sight Picture
Most BUIS systems utilize a sight picture that is non-intuitive.
The brain’s visual systems are asked to align a circular rear aperture with a rectangular front post shape while simultaneously ignoring the “ears” that protect the front sight post.
Dynalign’s circle-within-circle sight picture allows for faster sight picture acquisition.
Additionally, the use of a front aperture further reduces parallax effect which makes accuracy less dependent on precise sight alignment.
Dynalign is a faster and more accurate sight picture that can improve shooting performance.
C4 Front Sight Technical Specs
- FRONT PIN
- Includes 12 MOA Dynalign aperture
- 8, 10, and 14 MOA Dynalign Available
- MOUNTING
- MIL-STD-1913 Picatinny Rail
- WINDAGE
- 40 MOA Total
- 1/2 MOA Per Click
- ELEVATION
- 28 MOA Total
- 1 1/4 MOA Per 1/4 Turn
- MATERIAL
- 416 SS, Salt Bath Nitride Finish
- 6061-T6 Aluminum, Hard Anodized
- MASS 62g | 1.3oz
- DIMENSIONS
- 31mm | 1.21in Wide
- 9.4mm | 0.369in Height (Stowed)
- REAR APERTURE
- Threaded Ghost Ring
- 0.070" Included
- 0.050" Available
- MOUNTING
- MIL-STD-1913 Picatinny Rail
- WINDAGE
- 40 MOA Total
- 1/2 MOA Per Click
- ELEVATION
- 18 MOA Total
- 50 yard BDC clicks to 600 yards*
- MATERIAL
- 4140 CrMo Steel, Salt Bath Nitride Finish
- 7075 Aerospace Alloy, Hard Anodized
- MASS 71g | 1.7oz
- DIMENSIONS
- 35mm | 1.38in Wide
- 9.4mm | 0.369in Height (Stowed)
